PORTABLE ESCAPE CHUTES FOR EMERGENCY SERVICES
Single Entry Escape Chute applications for Fire & Rescue & Emergency Services

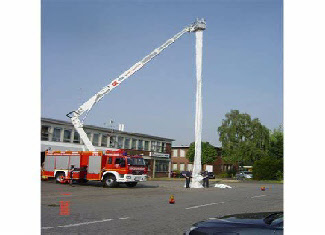

Escape Chutes can be fitted to Fire Department Aerial Ladders and Snorkel Platforms,
this will increase the rate at which evacuees can be evacuated from a high-
The movable/portable chute has become standard rescue equipment used by fire bridges
worldwide for high-
Protection, the evacuees are protected once inside the chute from flames, heat, and smoke.
RSS ESCAPE CHUTE Technical Specifications for the Mobile/Portable Rescue Chute.
Mobile/Portable Rescue Chutes have become standard rescue equipment for fire aerial ladder trucks such as:
- Bronto
- Skylift,
- Simon Snorkel,
- Cella,
- Iveco
- Magirus,
- Metz
- Rosenbauer
Characteristic Features
The Mobile Unit provides a dual function in one, portable and suitable for the rescue of people trapped in tall buildings. The universal standard foldable platform is portable and adaptable for use with mobile rescue units, such as the fire brigades’ aerial ladder trucks. The foldable platform can either be ready mounted on the bucket or in a cassette, which is ready for use as required. With additional equipment, this platform can also be used from the window or balcony of a structure.
The chute main body is made up of several segments of 3 layers chute. The start piece of the first segment, usually of 61m or 8 long with fire snap hooks on one end.
The other segment of chute with fire snap hooks on both ends usually corresponds to the height of a regular floor. The starting piece and the other segments are easily connected with fire snap hooks for extending the chutes height to meet the desired chute length.
Customers can specify the length for the start piece or each segment to meet their individual rescue needs.
The quick deployment of the mobile rescue unit provides people who are trapped buildings
a safer means of rapid escape from the bucket to ground and reduces the risk of exposure
for the firefighters. This approach eliminates the time involved in lowering and
raising the aerial-
Should the surroundings of the building not be accessible by the fire aerial truck, the portability of the unit allows the rescue personnel to carry the unit to each desired floor. This additional equipment allows the rescue chute to be positioned at the parapet of the balcony or window. However, the rescuer must ensure that the wall of the balcony and window, ceiling and floor are structurally safe for the unit to be deployed. The maximum safety load is 200 kg or 50 meter in height.
Material Specifications
Universal foldable platform – 100% aluminum (frame and cast), foldable, portable, attachable to buckets of most fire trucks. Aluminum cast Alsi nr 6. Steel ring. Portable carrier bags are provided for the storage of each chute section.
The chute main body material is Gray in color, constructed of three layers chute.
This 3-
Outer Chute – The protection layer with a heat resistance of 600 degrees and a melting
point of 800 degrees. Temperature limits for continuous use 550-
This material provides a shield from flame, and provides protection to the two underlying chutes.
Middle Chute – The braking layer Modacryl and Elastomer (lycra) at sofetning point of 165 degree Celsius. This elastic material, covering inner chute that enables the user to control his/her speed of descent. The important properties of these materials are its modulus of elasticity (260%) and its withstanding temperatures of 165 degrees Celsius.
Inner Chute – The friction layer Interlayer Para Aramid, warp and vet Viyl Chloride fibres. Strength ISO 5081 (N) 3482 stripes 50mm and its tensile strength ISO (N) 10mm stripes support the chute. No softening point, decomposing temperature at about 500 degree Celsius. Evacuees slide down the chute through this inner layer, which bears the tensile stress, and has extremely low friction to minimize friction burns or chafing.
Each fire snap hook is constructed from stainless steel, these can be adjusted to extend or shorten the chute length. Each end of lengthening joint contains one segment of chute consisting of 12 sets of fire snap hooks for easy connection to the next segment of chute.
Descent and Safety
The system works on the principle of gravity, using the stress and friction of the body as it slides through the chute. Usability for all people, regardless of body size, shape and weight, injured on a stretcher or unconscious people can use the chute. Once inside the chute the evacuee will arrive at ground level quickly and relatively safely.
For conscious evacuees, slide down the chute and push out your elbows or knees. For a more rapid descent, the users keep their body as straight as possible. No other method of evacuation allows for such flexibility in control of descent speed: average speed for evacuee with right behavior is about 2.5 m per second, which may vary from 0 – 5 m per second. It would take approximately 35 – 40 seconds to descend a chute of up to 50 meters and capable of conveying up to 30 persons per minute from any storey to safety.
For safety reasons, the SOP requires a helper at ground level to control a fast descend and guide the user out of the chute. By twisting and slowly untwisting the chute you can control the speed of a descending person. This method enables the injured, unconscious, disabled and small children to be evacuated safely.
Storage of Chute:
The chutes are folded inside its protective container and portable bag(s), providing
year round weather protection, these chutes are then ready for use at any time. After
use, the chute can be re-
RSS can design an Escape Chute System to suite your particular needs, please call one of our fully trained representatives.
For more information, please call and one of our representatives, we will be happy to answer any questions you may have.
